DXH-130
Fully Automatic Cartoning Machine
Applications

The machine suitable for automatic feeding and packing such as medicine blister, bottle, plaster, granule and some similar bag type products into the carton. Automatic feeding structure adjust conveniently, randomly set the bag number in touch screen. Online products feeding and detecting, leaflet folding (1-4 folds) and feeding, leaflet detecting, carton opening and forming, products and leaflet pushing into carton, printing lot number, sealing carton with tuck-in or hot melt glue device. Automatic reject lacking of package products and leaflet, convey the finished products. This machine appearance all uses the high quality stainless steel cover, the work surface by the organic glass doors and windows closed, strictly according to the medicine industry "GMP" standard request innovation design. The machine can be used single or joint with other equipment for a production line.




Features
  • 1.
    Adpot International famous brand of electrical component such as PLC. Frequency inverters, etc.
  • 2.
    Adopt Human-machine operation System.
  • 3.

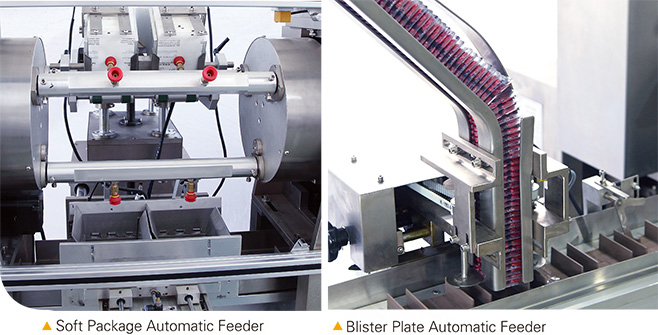

    Servo feeder suitable for different specification blister and bag feeding.
  • 4.
    4. Automatically stop when machine is overloaded.
  • 5.
    Automatically reject lacking of package products and leaflet
  • 6.
    Automatically display trouble, alarm and counting.
  • 7.
    Stable performance, easy operation
Main Technical Parameters

Encasing speed

80-130 boxes/min

Box

Quality requirement

250-350g/m2(according to its dimensions to confirm)

Dimension range (L*W*H)

(70-180)mm*(85-130)mm*(14-50)mm(L*W*H)

Leaflet

Quality requirement

60-70g/m2

Unfolded leaflet specification
(80-250)*(90-170)mm

Folded leaflet specification

1-4(Fold)

Compressed air

Working pressure

≥0.6mpa

Air consumption

20m3/h

Power supply

380V 50HZ

Motor power

3.5kw

Machine dimension (L*W*H)

4600*1600*1550mm

Machine weight

2000kg


Note: The products of our company may always be updated, and are subject to change without notice (the real products shall prevail).
